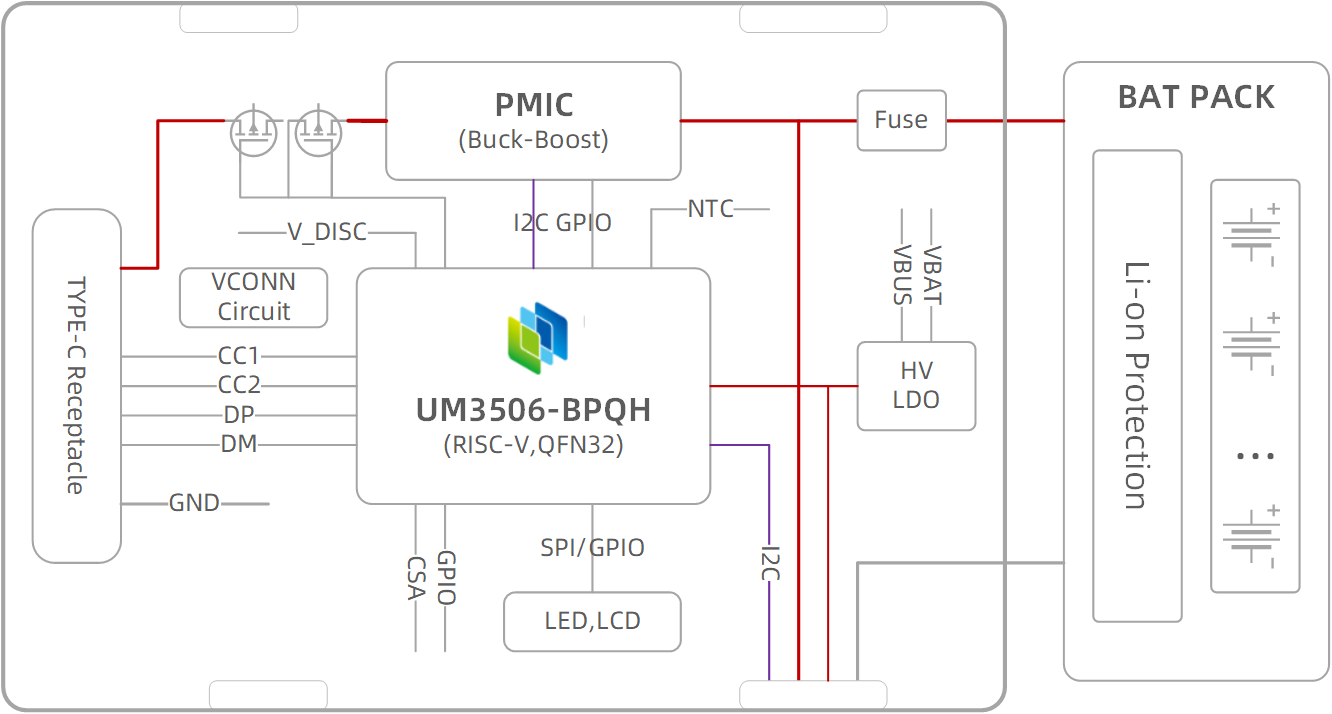

Block Diagram
Function & Advantage
Chip Recommendation
6 to 7 strings of cell configuration.
PD3.1 140W DRP.
Full-stack PD DRP protocol.
5/9/15/20V @ 5A, 28V @ 5A.
Supports SPR PPS, EPR AVS.
Flexible VDM message extension capability.
Complete system charge and discharge power strategy.
Supports power consumption statistics.
Optional multiple system status displays (light display, LCD screen, etc.).
The main controller UM3506 supports online upgrade.
Supports TYPE-C port expansion of the TCPM + TCPC architecture.
